Grass Grid Nidagrass NG040
Eco-friendly Grass Paving Grids for Natural Car Parks
Grass grids are an environmentally friendly way to create natural-looking car parks that blend into the landscape and can increase biodiversity over large areas at car parking sites, office car parks and overflow car parks across the UK
£15.00 per m2 + VAT
Eco-friendly Grass Grid System for Car Parks

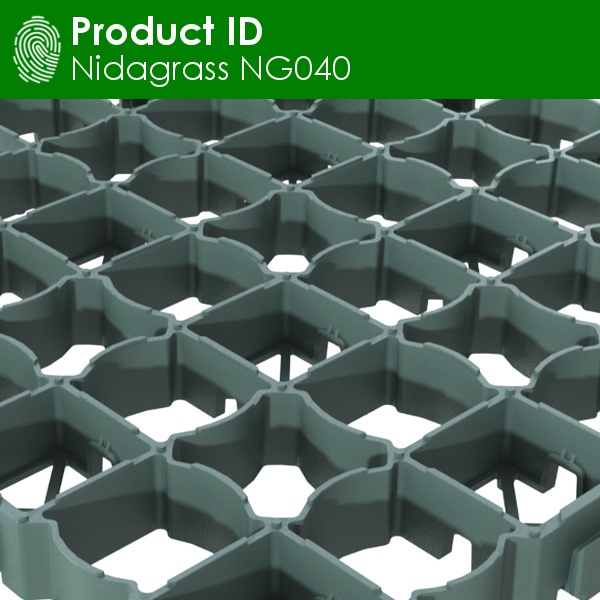

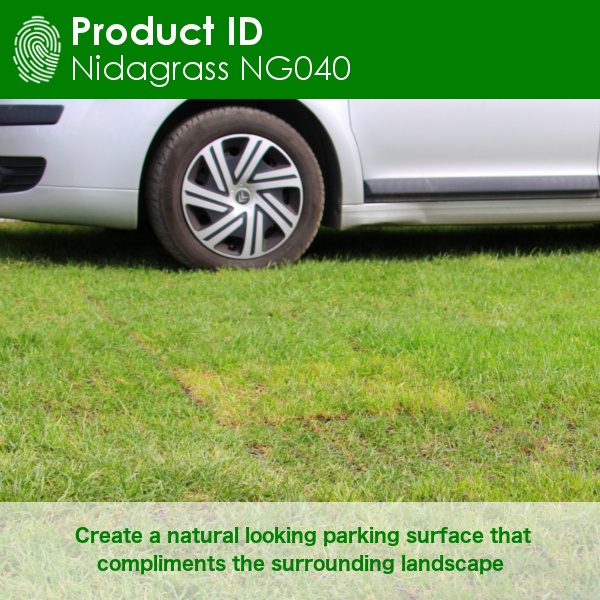

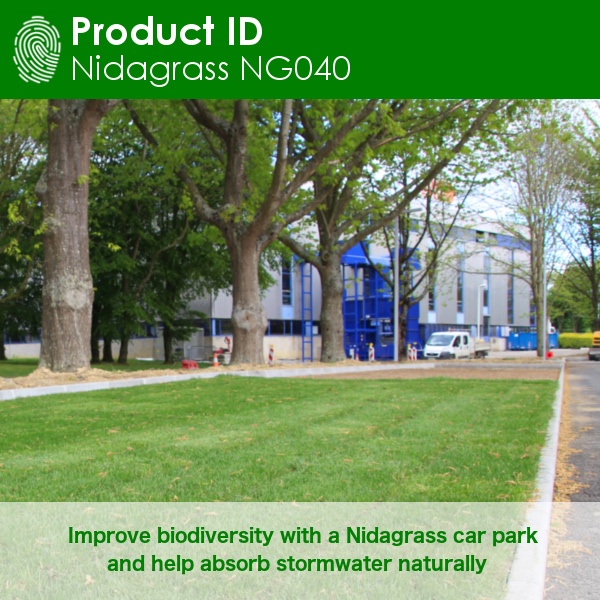

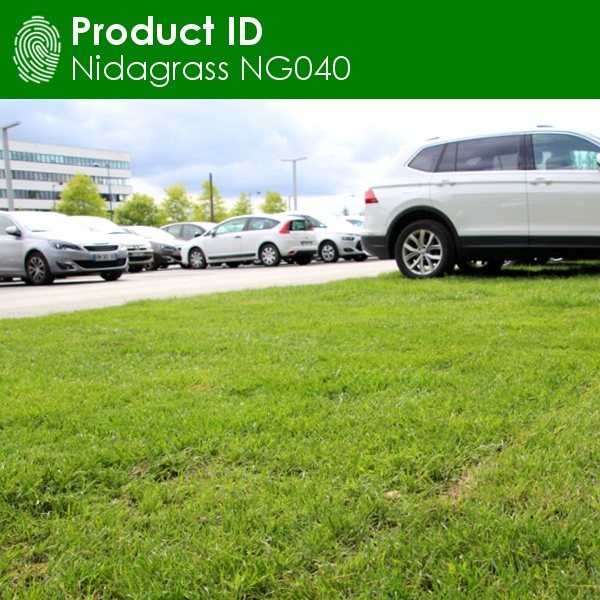

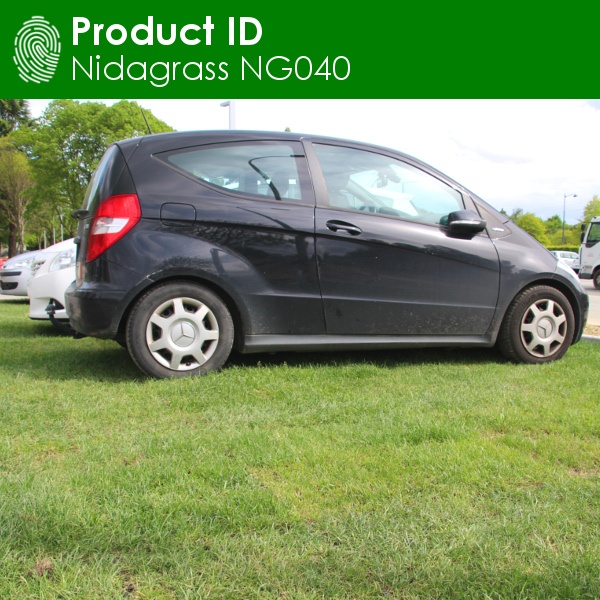

Nidagrass NG040 is our grass reinforcement system used for the creation of grass parking areas. Nidagrass grids are designed to be filled with a rootzone mix of sand and soil and then seeded with hard-wearing grass seed to create a reinforced grass surface suitable for car parks. Nidagrass NG040 grids offer architects and designers a more environmentally friendly option for surfacing car parks which is becoming ever more important with the effects of climate change and the need to control rainwater run-off, especially in urban settings. A grass grid car park is 100% rainwater permeable over the full surface area and can be integrated with other permeable landscaping surfaces including gravel and paving. A grass grid parking area can also help to increase the biodiversity of a car park, especially when combined with tree planting, wildflower areas, shrub planting and habitat for wildlife to create a natural-looking car park that blends into the landscape.
Fast Grass Grid Installation

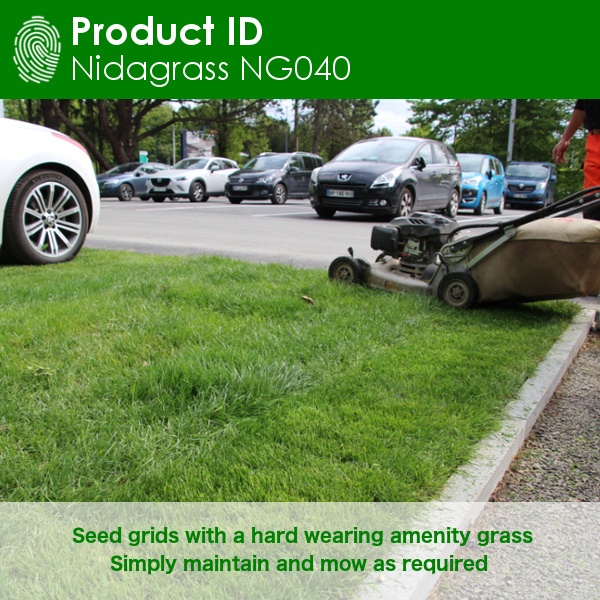

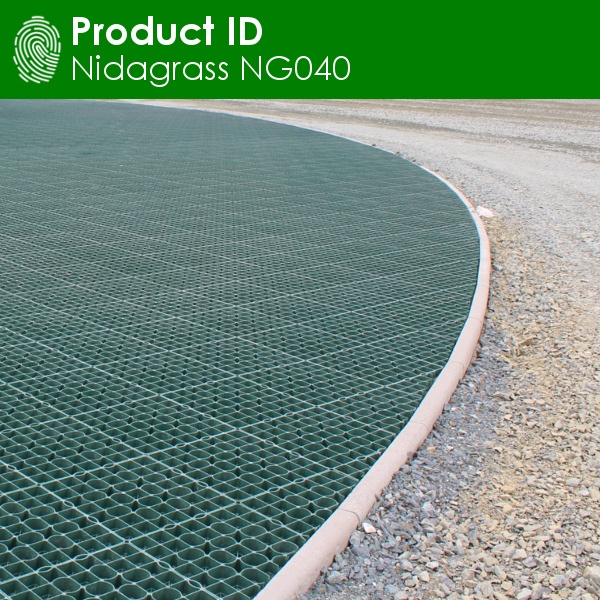

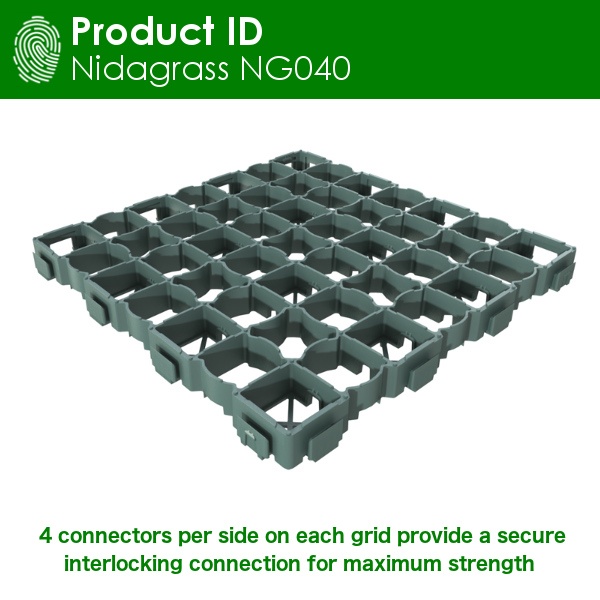

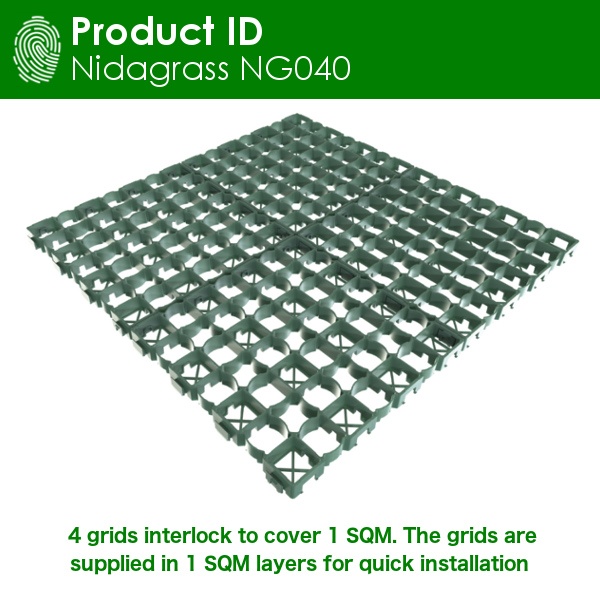

Nidagrass grids are simple and quick to install. The grids are picked off the pallet 1 SQM at a time and laid onto the prepared base. The grass grids interlock using male and female connections that are made to be robust and easy to connect. The grids can also be easily cut to shape using a hand saw or circular saw. The grids are filled with a sand and soil mix called rootzone, this soil mix is free draining but also contains enough nutrients to support grass growth. Rootzone is usually 60% sand and fine gravel mixed with 40% topsoil. The grids are filled with rootzone either by hand or machine and then seeded with a hard-wearing grass seed mix. Water, as required to allow the grass to establish prior to regular use and your grass car park, is ready for use. Maintain the grass surface and mow as required.

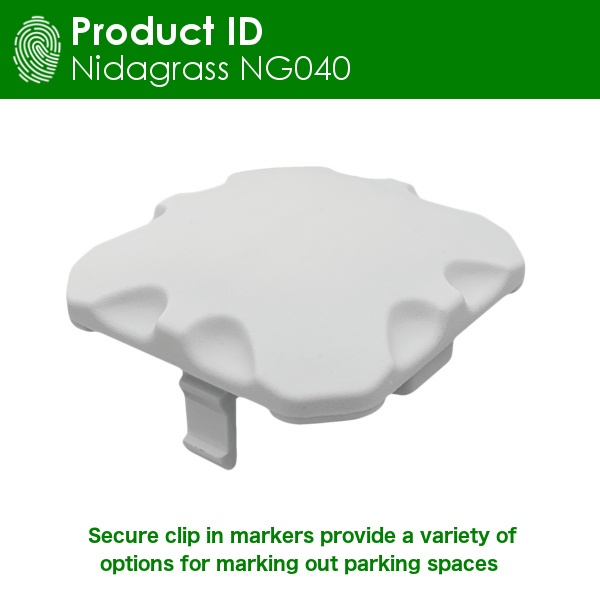

Nidagrass NG040 grass grids are made from 100% recycled plastic and are green in colour to blend seamlessly with natural grass. NG040 white clip-in parking markers are also available for marking car parking spaces. These simply click into position.
Please note that the NG040 Expansion joint unit is not required for grass installations.
FREQUENTLY ASKED QUESTIONS:
Click here to see answers to questions about Nidagravel gravel grids
ORDER A SAMPLE:
Click here to order a sample of Nidagrass NG040
HOW WE DELIVER:
Click here to see how your Nidagravel gravel grids will be delivered

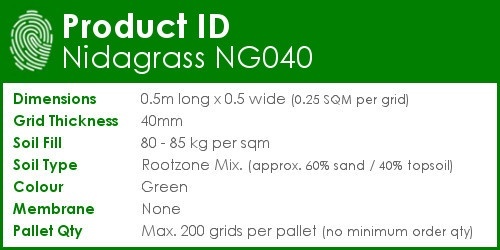

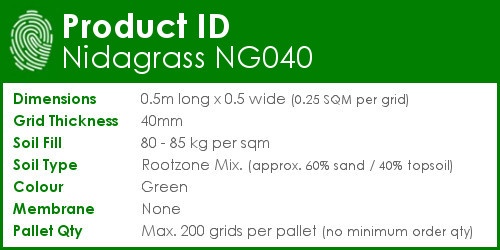

|Function||Grass Reinforcement Grid|
|Material||Low-Density Polyethylene (LDPE)|
|Recycled||100% Recycled Product|
|Weight||1.3 kg per Grid (Unfilled)|
|5.2 kg per SQM (Unfilled)|
|Strength||310 tonnes per SQM (Unfilled)|
|Under compression / Load-bearing|
|In accordance with ISO 844|
|resistance to chemical substances|
|Highly resistant to aggressive products|
|Highly resistant to microorganisms and rodents|
|Excellent UV Resistance|
|DIN 38412||Weather proof and environmentally friendly|
|DIN 4102||Approved for emergency access roads|
|DIN 1072||Approved for axle loads up to 20 tonnes|
|DIN/ISO 124/B125||Approved for parking spaces, access roads and storage depots|
