Heavy Duty Gravel Grid Nidagravel NG040

Heavy Duty Commercial Gravel Stabilisation Grids
Extra tough and durable gravel grids suitable for stabilising driveways, car parks, access roads, storage yards, and commercial landscaping projects. 100% rainwater permeable, high load capacity and SuDS compliant.

£14.48 per m2 + VAT

Cost per grid: £3.62 + VAT (grid size is 0.25m2)
Enter your grid quantity here:grids
Calculator: use this calculator if you have width and length measurements
Width of area to be covered:M
Length of area to be covered:M
OR enter the exact area here:M2
You will require:grids
Exact coverage:M2

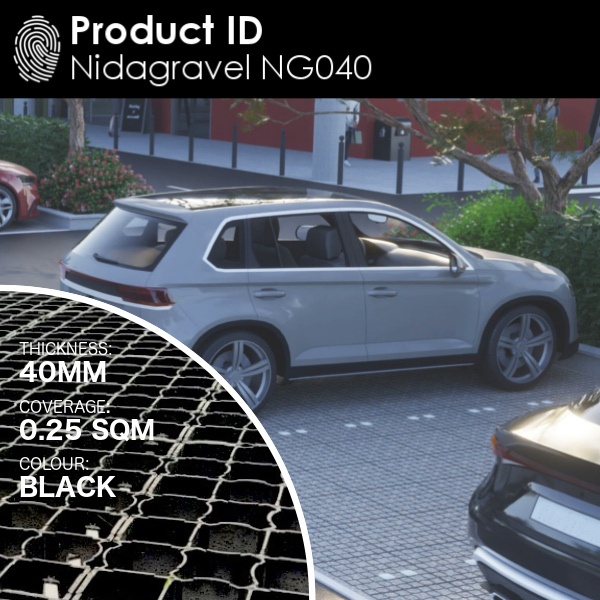

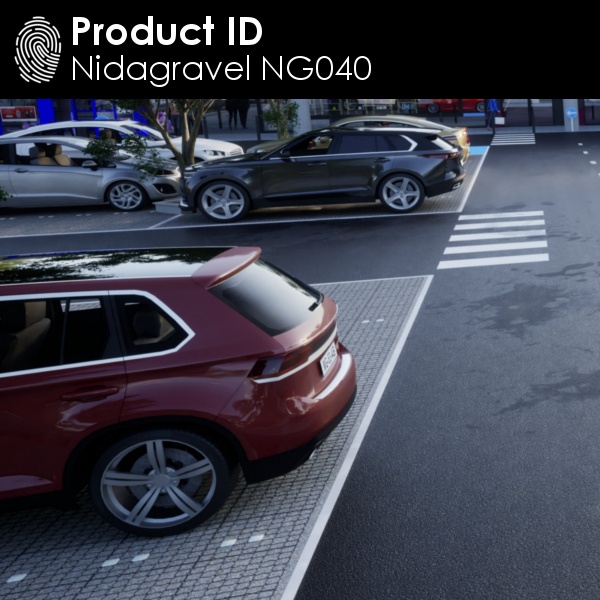

Heavy Duty Gravel Grid for Driveways, Car Parks & Commercial Projects

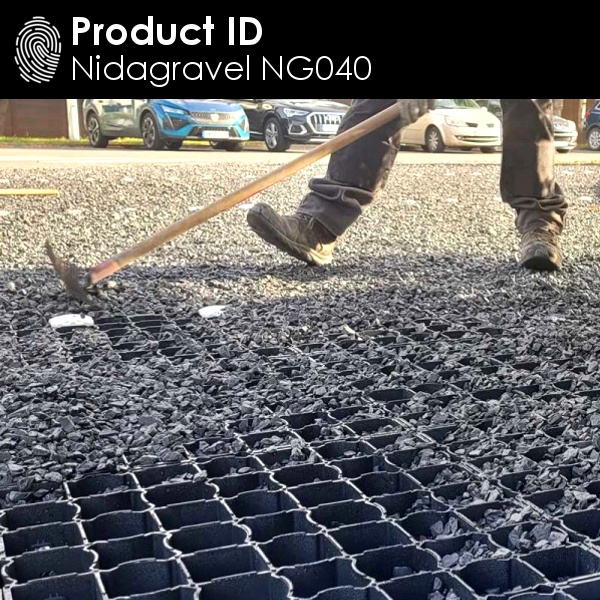

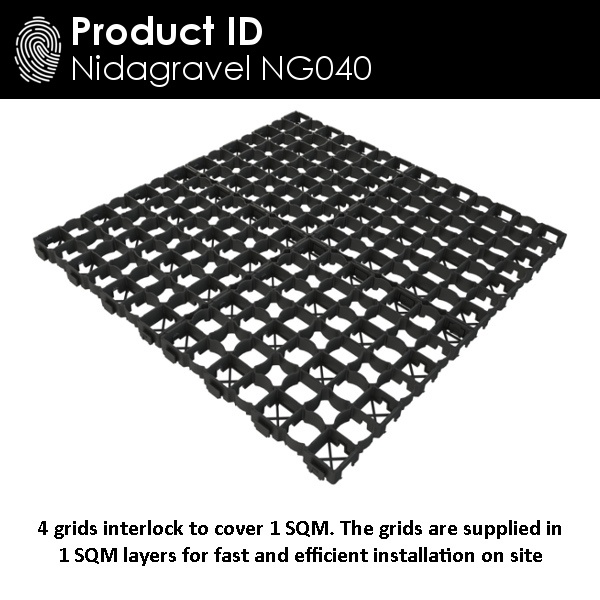

Nidagravel NG040 is a heavy-duty gravel grid used for commercial gravel stabilisation applications including driveways, car parks, access roads, storage yards, and surfaces subject to heavy use by HGVs and forklifts. NG040 gravel grids are durable, 100% water-permeable quick to install, and require almost zero maintenance. NG040 gravel grids are designed for strength and should be filled with 10 - 20mm angular gravel. Nidagravel NG040 gravel grids interlock for extra stability and are manufactured from low-density polyethylene (LDPE) which is a 100% recyclable plastic material. Each Nidagravel NG40 grid is 500mm x 500mm square and covers 0.25 sqm per grid. Four grids lock together to cover 1 SQM, which makes calculating quantities simple. The patented interlocking system ensures there can be no separation or movement between each grid and there is no limit to the area that can be covered. The grid matrix wall thickness is 3mm with an outer perimeter wall thickness of 5mm. These sturdy gravel grids are designed to be laid over a standard ground stabilising membrane placed above the correctly compacted sub-base material and filled with a decorative aggregate 10 - 20mm in size, We recommend using angular or irregular shaped gravel for maximum stability.

Nidagravel NG040 gravel grids cover 0.25 SQM per grid and snap together quickly for fast installation. The gravel grid system is 100% permeable and can be specified as part of a Sustainable Urban Drainage System (SuDS). The grids are installed by landscaping, building, and civil engineering contractors across the UK on projects requiring a porous and stable gravel surface that can withstand heavy loads and high axle weights. Applications include gravel driveways, permanent or temporary trackways, access roads, parking bays, lorry parking, storage yards, car parks, public spaces, and permeable car parking. The commercial application of Nidagravel NG040 is extremely varied and it is the ideal product to use where a heavy-duty reinforced gravel surface is required. The gravel grids are black in colour, UV stable, and resistant to extremes of high and low temperatures.

Nidagravel UK - Making gravel surfaces perform better...

Click here to see answers to questions about Nidagravel gravel grids

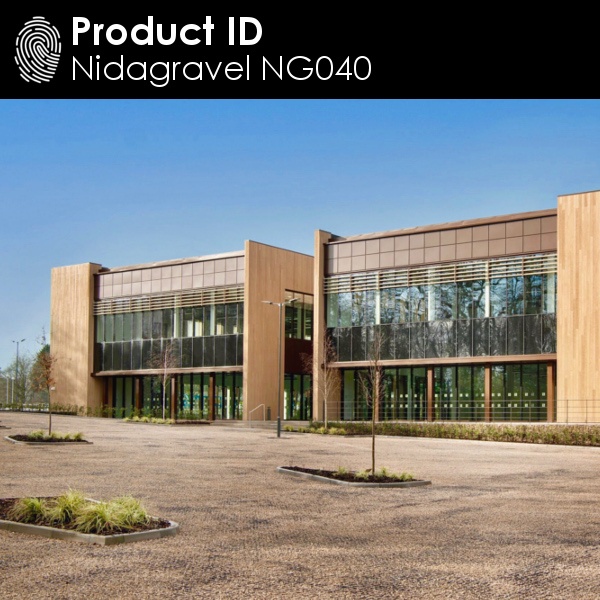

View a Nidagravel NG040 gravel grid stabilised gravel car park project

Click here to order a sample of Nidagravel NG040

Click here to see how your Nidagravel gravel grids will be delivered

  • The original and best gravel stabilisation system
  • Designed for optimum performance and durability
  • Designed for heavy-duty, gravel stabilisation & reinforcement
  • Made from 100% Recycled Low-Density Polythene (LDPE)
  • 100% Rainwater Permeable. Fully SUDS compliant

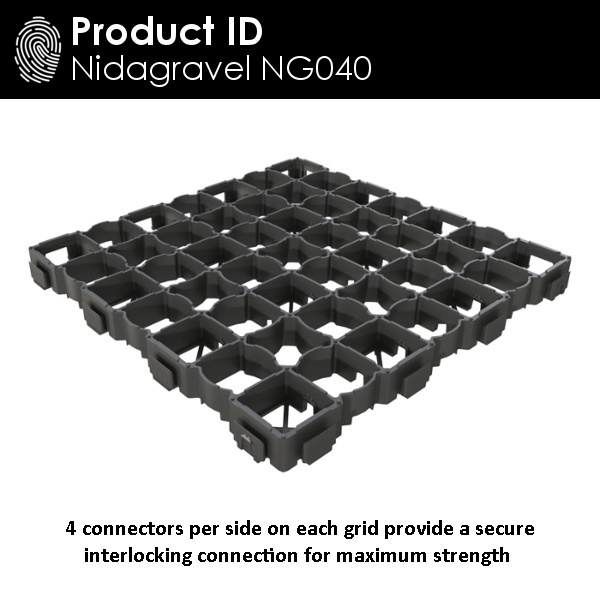

  • Interlocking grids for extra stability

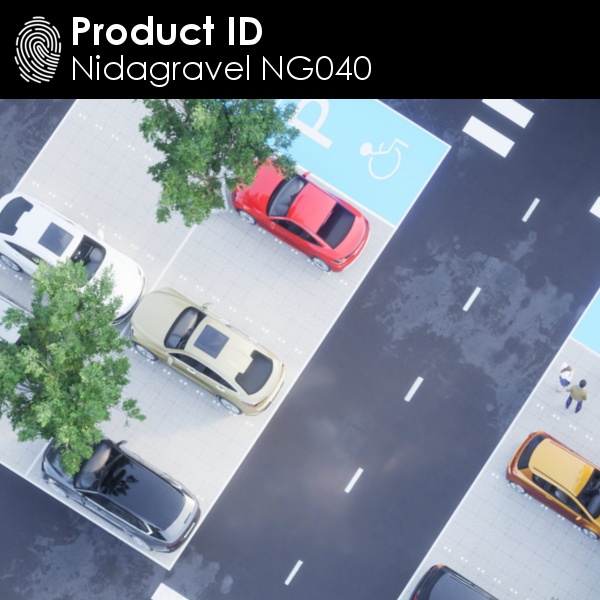

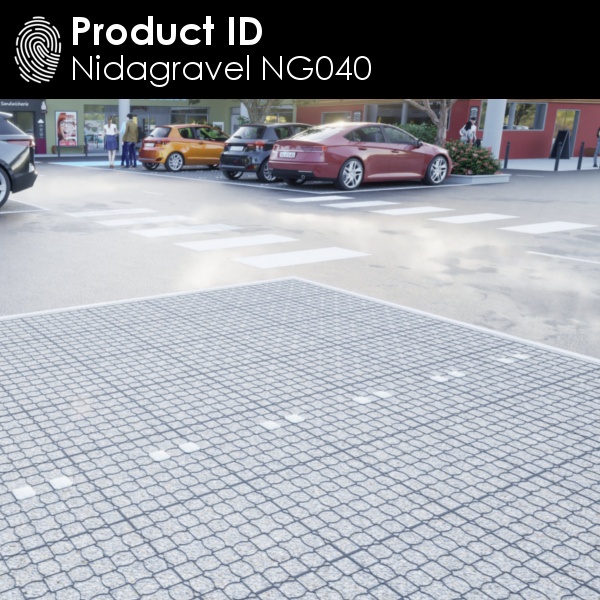

  • Use for driveways, car parks, access roads, permeable parking
  • Suitable for HGVs, Artics, Forklifts, Heavy Plant, 8 Wheel Tippers

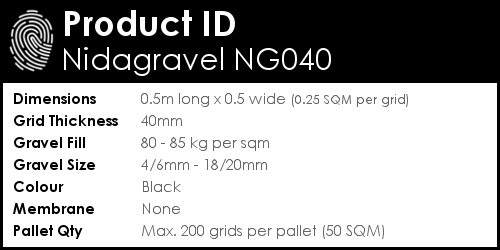

  • Grid dimensions: 0.5m x 0.5m x 40mm (L x W x H)
  • Grid coverage: 0.25 sqm per sheet
  • Grid thickness: 40mm
  • Grid wall thickness (grid perimeter): 5.5mm
  • Grid wall thickness (inner matrix): 3mm
  • Grid weight empty: 5.2 kg per sqm
  • Grid weight empty: 1.3 kg per grid
  • Grid weight filled: 80 - 85 kg per sqm
  • Grid weight filled: 20 - 21 kg per grid
  • Grid colour: Black
  • Compression resistance (empty): Up to 310 tonnes per sqm
  • Compression resistance (filled): Up to 800 tonnes per sqm
  • Gravel fill: Decorative aggregate (angular shaped)
  • Gravel fill: 6 - 14 mm (recommended)
  • Gravel fill: 20 mm (max. size)
  • Axle load: 20 tons
  • Certification: DIN 38412, DIN 4102, DIN 1072
  • Certification: DIN & ISO 124 & B125
    Function Gravel Stabilisation & Soil Stabilisation
    Material Low-Density Polyethylene (LDPE)
    Recycled Made from 100% Recycled Plastic
    Weight Approx 5.2 kg per sqm
    Approx 1.3 kg per grid
    Strength Up to 310 tonnes per SQM (Unfilled)
    Strength Up to 800 tonnes per SQM (Filled)*
    Under compression / Load-bearing
    In accordance with ISO 844
    Dependant on gravel type used*
    Durability Excellent
    Resistance to chemical substances
    Highly resistant to aggressive products
    Highly resistant to microorganisms and rodents
    Excellent UV Resistance
    DIN 38412 Weather proof and environmentally friendly
    DIN 4102 Approved for emergency access roads
    DIN 1072 Approved for axle loads up to 20 tons
    DIN/ISO 124/B125 Approved for parking spaces, access roads and storage depots
    • Code: - NIDANG040B
    • Stock: - IN STOCK (Always in stock & ready to deliver)
    • Brand: - Nidagravel - more

    Other Items You May Be Interested In

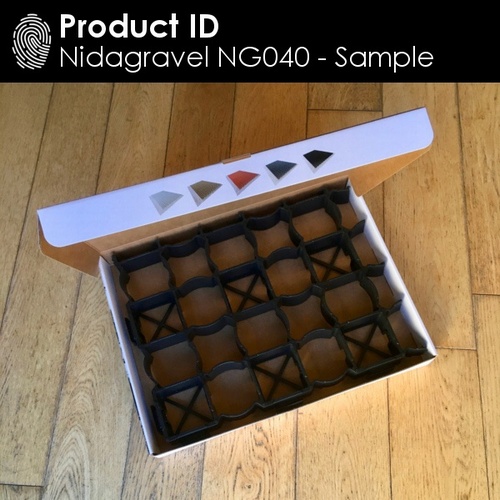

    Gravel Grid Nidagravel NG040 Sample

    Heavy-Duty Commercial Gravel Stabilisation Grids
    Gravel grids for stabilising all commercial, industrial and equestrian, heavy use gravel surfaces including parking bays, storage yards, car parks and trackways.

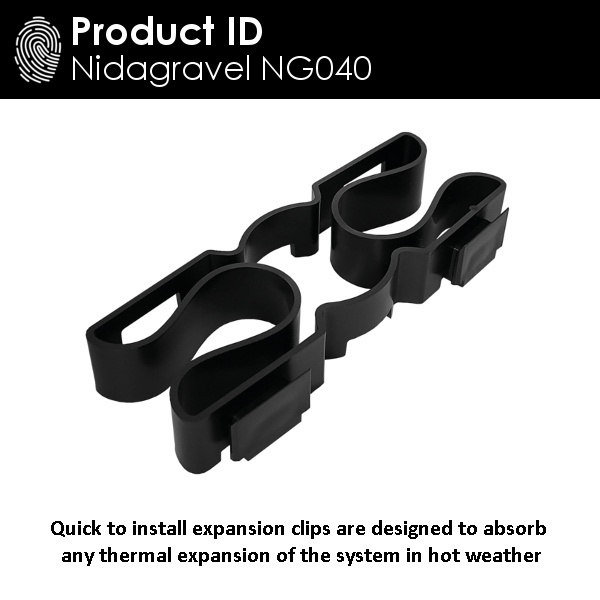

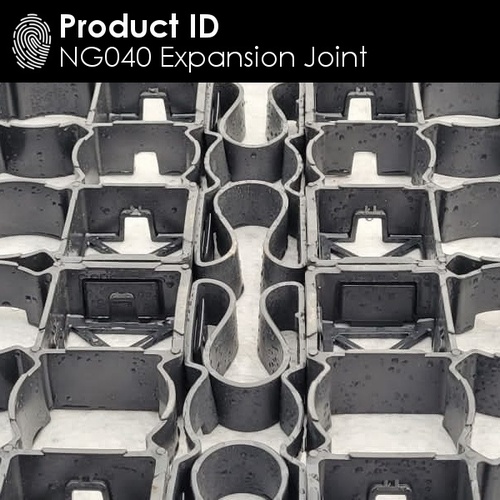

    NG040 Expansion Joint Unit

    NG040 Expansion Joint Unit
    Designed to be used with Nidagravel NG040 gravel grids to create expansion joints within large installations to allow for any thermal movement of the grids during periods of very hot weather.

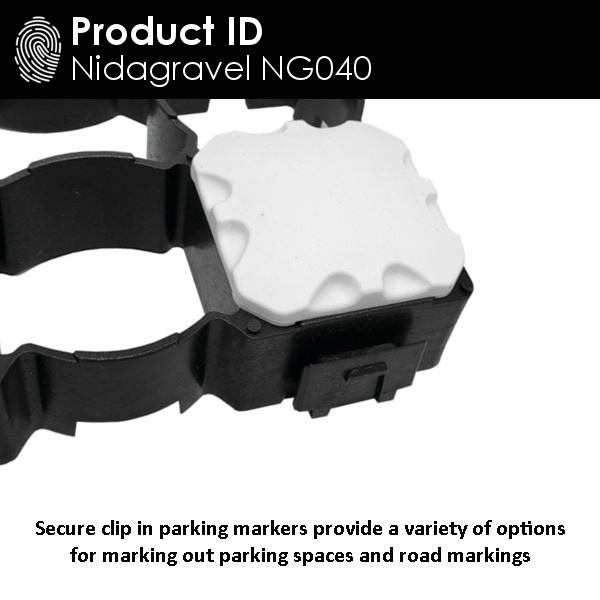

    NG040 White Car Parking Markers
